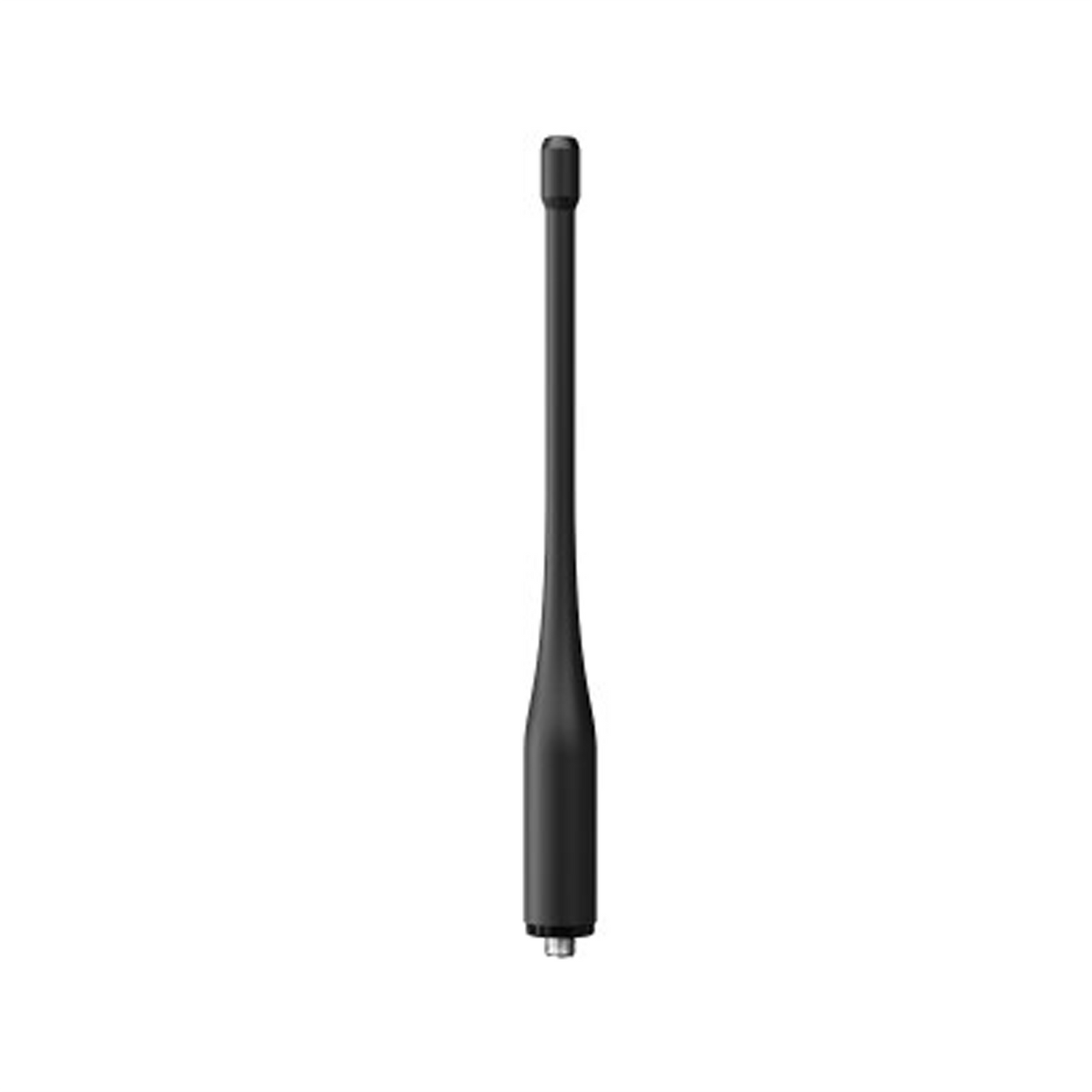

Motorola PMAD4164A VHF Whip Antenna - Optimized 136-155 MHz Coverage for Your BPR50dX
Key Features
- Factory-tuned 136 - 155 MHz VHF whip maximizes talk-range on the Motorola BPR50dX.
- Flexible 5.2-inch (132 mm) polymer whip bends without breaking - comfortable for belt or vest carry.
- SMA-female base threads directly onto the BPR50dX - no adapters required.
- Helical-tuned core and ≈ 0 dBi gain deliver clear audio with fewer dead zones.
- Genuine Motorola Mag One accessory backed by a 12-month OEM warranty.
Technical Specifications
| Frequency Band | VHF 136 - 155 MHz |
|---|---|
| Antenna Type | Flexible whip, helical-tuned |
| Nominal Gain | ≈ 0 dBi |
| Impedance | 50 Ω |
| VSWR | < 1.5 : 1 (typ.) |
| Connector | SMA-Female (radio side) |
| Length | 5.2 in / 132 mm |
| Operating Temp | -30 °C to +60 °C |
| Part Number | PMAD4164A |
| Warranty | 12-month Motorola OEM |
Why Choose Genuine Motorola Antennas?
- Matched tuning ensures peak RF performance and battery efficiency on the BPR50dX.
- Lifecycle-tested for drop, vibration, moisture, and UV exposure.
- OEM warranty coverage for dependable, long-term service.
Frequently Asked Questions
Is this antenna compatible with any radio other than the BPR50dX?
No. The PMAD4164A is factory-tuned and sized specifically for the Motorola BPR50dX portable radio.
Why choose a whip antenna instead of a stubby?
The 5.2-inch whip is a full quarter-wave radiator, providing stronger signal coverage and fewer dead spots than shorter stubby options - ideal for wide-area or obstructed sites.
Does this antenna include GPS or data capability?
No. It is a standard voice-band VHF antenna with no integrated GPS or broadband data elements.
