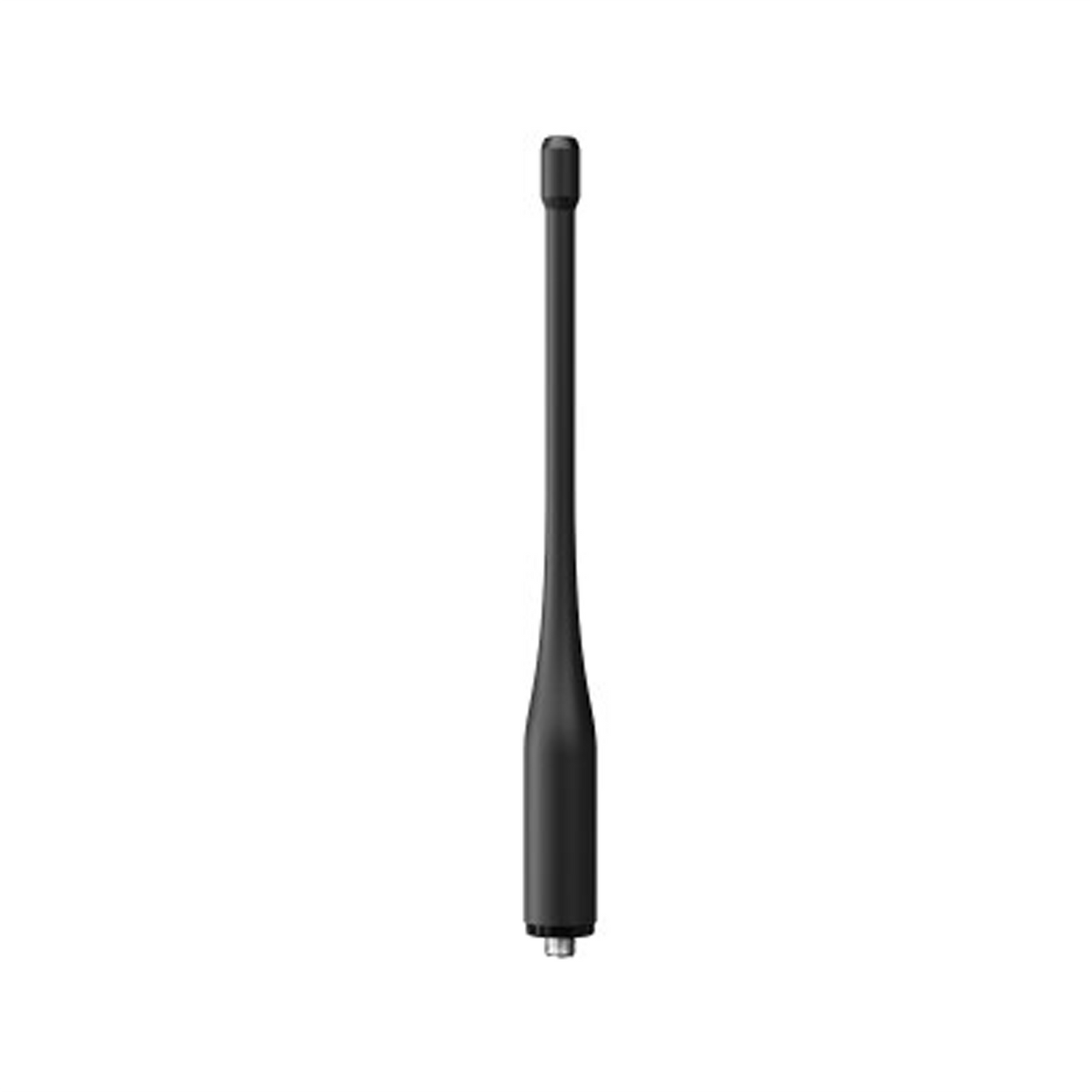

Motorola PMAD4165A VHF Whip Antenna – Max Range & Flexibility for Your BPR50dX
Key Features
- Optimized 152 - 174 MHz VHF whip maximizes talk-range on your Motorola BPR50dX.
- Flexible 5.2-inch (132 mm) polymer whip bends without breaking - comfortable all-day carry.
- SMA-female base threads directly onto the BPR-series battery rail - no adapters required.
- 0 dBi nominal gain and tuned helical core ensure clear audio and fewer dead spots.
- Genuine Motorola Mag One accessory backed by a full 12-month OEM warranty.
Technical Specifications
| Frequency Band | VHF 152 - 174 MHz |
|---|---|
| Antenna Type | Flexible whip, helical-tuned |
| Gain | ≈ 0 dBi |
| VSWR | < 1.5 : 1 (typ.) |
| Impedance | 50 Ω |
| Connector | SMA-Female (radio side) |
| Length | 5.2 in / 132 mm |
| Operating Temp | -30 °C to +60 °C |
| Part Number | PMAD4165 |
| Warranty | 12-month Motorola OEM |
Why Choose Genuine Motorola Antennas?
- Factory-matched tuning delivers peak performance and battery efficiency.
- Lifecycle-tested for drop, vibration, moisture, and UV exposure.
- OEM support and hassle-free replacements within the warranty period.
Frequently Asked Questions
Is this antenna interchangeable with other Motorola portables?
No. The PMAD4165A is factory-tuned exclusively for the Motorola BPR50dX. Using it on another model may reduce range and audio quality.
Why choose a whip over a stubby antenna?
The 5.2-inch whip is a full quarter-wave radiator, giving stronger signal coverage and fewer dead spots than shorter stubby options—ideal for large or obstructed sites.
Does this antenna include GPS or data capability?
No. It is a standard voice-band VHF antenna without integrated GPS or broadband data elements.
