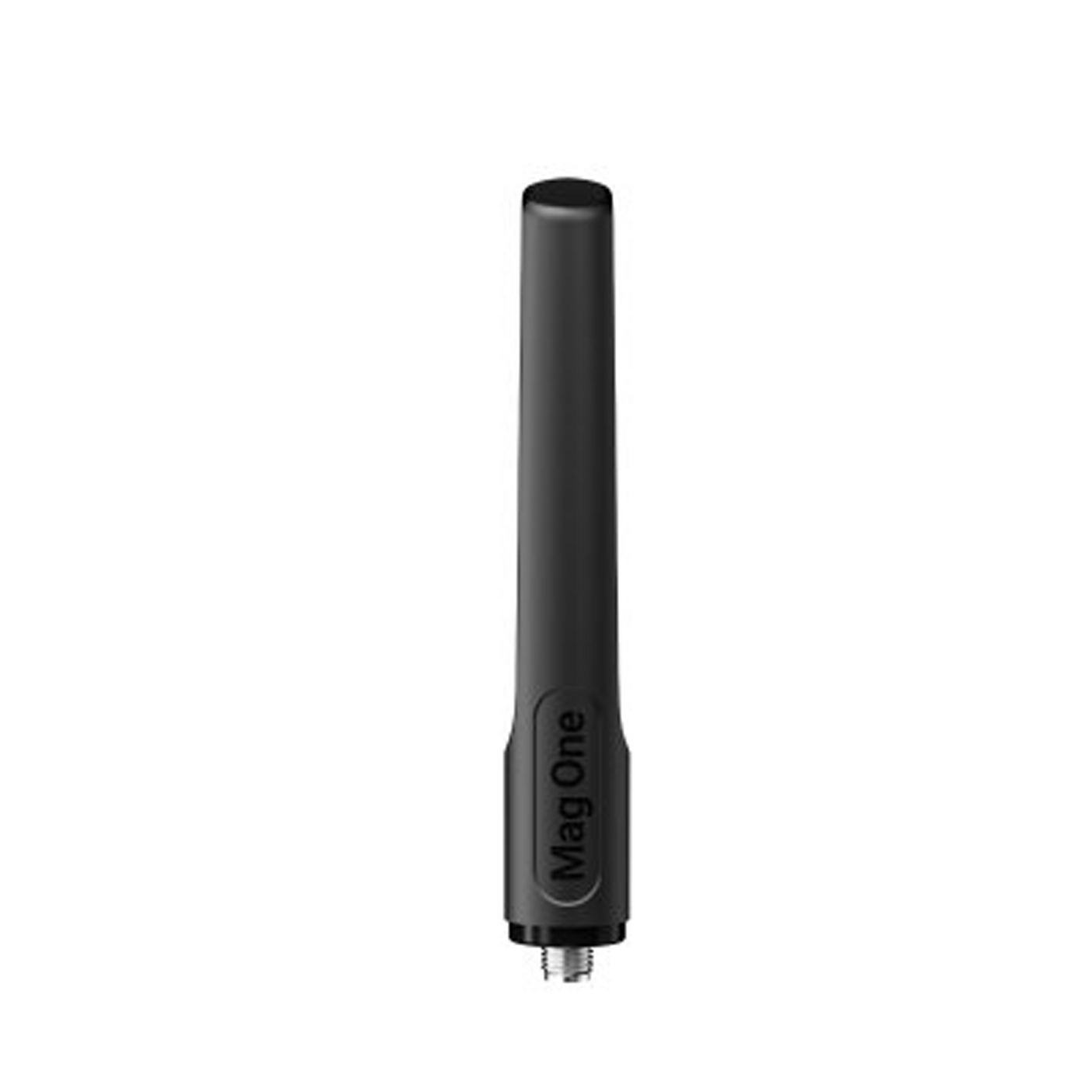

Motorola PMAE4118A UHF Stubby Antenna - 450-470 MHz Low-Profile Performance for Your BPR50dX
Key Features
- Factory-tuned 450 - 470 MHz stubby keeps your Motorola BPR50dX compact without sacrificing day-to-day range.
- Short 3.5-inch (90 mm) length minimizes snagging on tool belts, safety vests, and doorways.
- SMA-female base threads directly onto the BPR50dX - no adapters or tools required.
- Helical-tuned core maintains ≈ 0 dBi gain across the entire 450-470 MHz slice.
- Genuine Motorola Mag One accessory with full 12-month OEM warranty.
Technical Specifications
| Frequency Band | UHF 450 - 470 MHz |
|---|---|
| Antenna Type | Stubby, helical-tuned |
| Nominal Gain | ≈ 0 dBi |
| Impedance | 50 Ω |
| VSWR | < 1.5 : 1 (typ.) |
| Connector | SMA-Female (radio side) |
| Length | 3.5 in / 90 mm |
| Operating Temp | -30 °C to +60 °C |
| Part Number | PMAE4118A |
| Warranty | 12-month Motorola OEM |
Why Choose Genuine Motorola Antennas?
- Precisely matched to the BPR50dX RF section for optimal audio clarity and battery life.
- Drop-, vibration-, moisture-, and UV-tested to Motorola quality standards.
- Covered by OEM support for hassle-free replacement within the warranty period.
Frequently Asked Questions
Is this antenna compatible with radios other than the BPR50dX?
No. The PMAE4118A is purpose-tuned and sized specifically for the Motorola BPR50dX portable.
How does a stubby compare with a 5-inch whip?
The stubby is shorter and l
