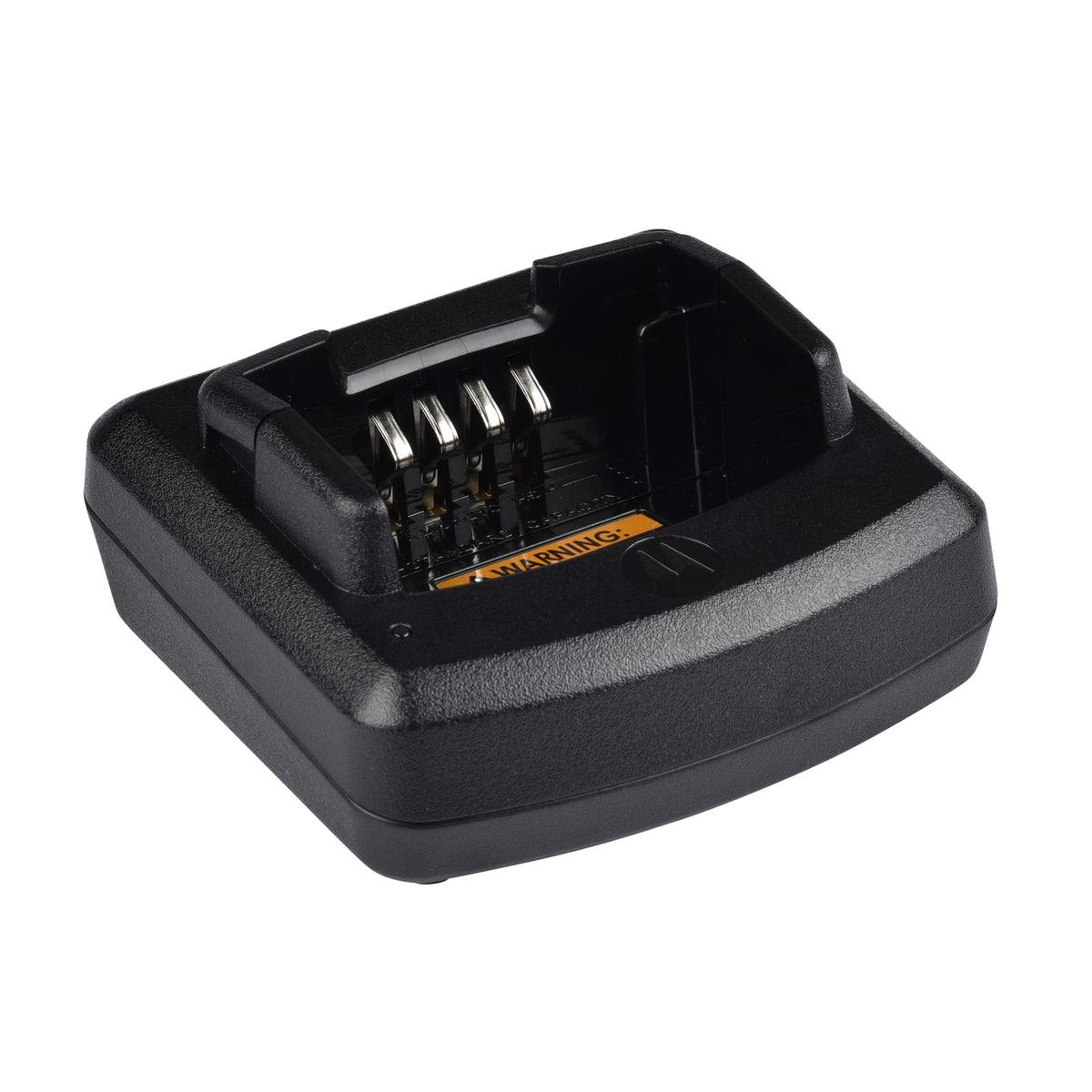

Motorola RLN6175 RDX Standard Charging Tray

The Motorola RLN6175A is the standard single-unit drop-in charging tray that ships in the box with every RDX Series radio — RDU4100, RDU4160d and RDV5100 (also RDU2020, RDV2020 and CP110). It charges the battery on its own or with the radio attached, and it is the tray to reorder when the original is lost or damaged.

Tray only. It runs on the Motorola RPN4054A standard power supply (sold separately) — if you still have the adapter that came with your radio, this tray plugs straight into it.

Specifications

• Part number: RLN6175A (genuine Motorola Solutions)
• Type: standard-rate single-unit desktop charger tray
• Charge time (Motorola RDX user guide): about 7 h standard battery, 12 h high capacity, 13 h on the RLN6308 ultra-high-capacity battery. Need faster turnaround? The RLN6309 six-unit rapid charger does it in 1.5–3.5 h.
• Compatible radios: RDU4100, RDU4160d, RDV5100, RDU2020, RDV2020, CP110
• Compatible batteries: RLN6351 standard Li-Ion, RLN6308 ultra-high-capacity Li-Ion, BP6305LI
• Also supports: radio-to-radio cloning with the RLN6303 cloning cable
